Tube bending plays a critical role in manufacturing applications ranging from automotive systems to industrial equipment. For those who wish to learn how to bend tubing, understanding the basic techniques, tools, and materials provides a solid foundation.
What is tube bending and how important is it for modern industries? It is a metal forming process used to shape tubing into specific angles and curves without compromising its structural integrity. It’s widely applied in industries such as automotive, aerospace, construction, and HVAC, where fluid transport, structural support, or compact routing is required.
For those wishing to explore the field, understanding tube bending basics includes learning how the process works, which tools are involved, and what materials perform best under which circumstances. Accurate knowledge is essential for achieving functional and cost-effective results in fabrication.
Tube Bending Basics: Core Concepts and Process Overview
At its absolute base, the tube bending process involves forming metal tubing into a desired angle or curve without collapsing, wrinkling, or kinking the material. While the concept may sound simple, achieving a precise, consistent bend requires an understanding of several key factors.
One of the most important concepts is the bend radius. To be exact, the radius of the tube centerline at the bent section. A smaller radius can lead to deformation if the tube doesn’t have the proper support. Wall thickness also plays a crucial role. Thinner walls are more prone to crimping or flattening during the bend.
Other critical variables include springback, the tendency of the material to naturally return to its original shape, and elongation, the degree to which the material stretches during forming.
These factors altogether make up the tube bending basics that determine how a tube will behave during bending and influence decisions on tooling, technique, and material selection. Whether you're working with manual tools or automated systems, understanding these fundamentals is essential to producing reliable, repeatable results.

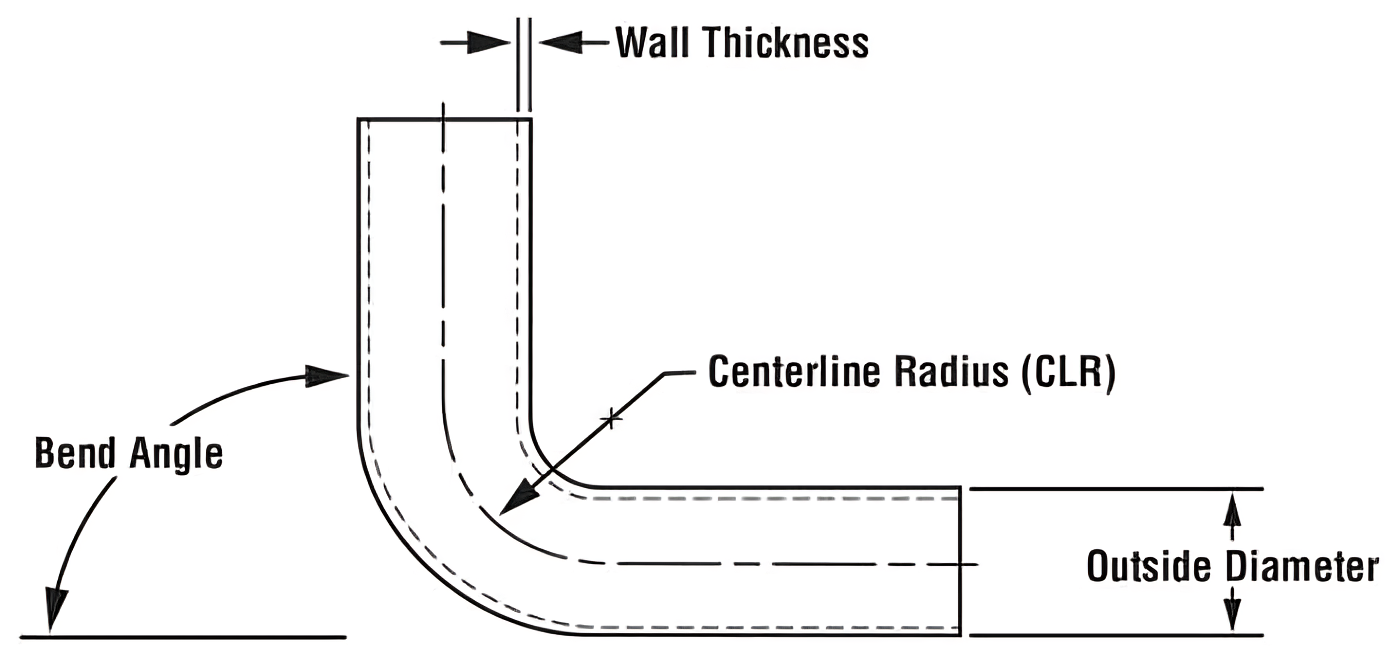

Bend radius is how tight the tube is bent – it’s the distance from the middle of the bend to the center of the tube
Tools and Techniques: What Makes up Tube Bending Process
The quality of any tube bend depends heavily on the tools and methods used. While manual tube bending tools are still common for low-volume or simple applications, most industrial operations rely on precision equipment, such as CNC tube benders, to ensure consistency and repeatability.
The most widely used techniques include:
- Compression Bending
- Pushes the tube around a stationary die
- Suitable for large bend radii and less complex shapes
- Often used for basic applications where precision is not critical
- Rotary Draw Bending
- Guides the tube around a fixed radius using a rotating die
- Delivers high precision and repeatability
- Ideal for tight bends, consistent radii, and professional-grade fabrication
- Rotary Draw Bending using a Mandrel
- Inserts a mandrel (internal support) inside the tube during bending
- Prevents collapse, wrinkling, or flattening
- Essential for thin-walled tubing or tight-radius bends
Supporting tools like dies, clamps, wiper dies, and mandrels also play a critical role in the outcome. The tooling is selected based on factors like tube diameter, wall thickness, material type, and required bend radius. Together, the technique and tooling define how accurately a bend can be made and how well it maintains the tube’s structural integrity.
A three-roll tube bending machine bending used to bend a piece of steel tubing
The Best Materials to Use for Tube Bending
In tube bending, achieving a precise and repeatable bend doesn’t just depend on the machine, but also on the materials used to support the process. Tooling components like mandrels, wiper dies, and pressure dies must withstand high stress and wear resistance while maintaining dimensional accuracy.
Although various metals are used in tool manufacturing, not all perform equally. They differ in parameters and applications. Some of the most widely used include:
- Tool Steel
- Widely used due to its hardness and strength
- Prone to galling and surface damage when in contact with certain tubing materials
- Requires lubrication and can contribute to higher friction and wear
- Surface-Treated Steel
- Enhanced with hard coatings to improve wear resistance
- Helps reduce surface damage but still lacks thermal conductivity
- May be costlier and less adaptable to different tube materials
- Aluminum Bronze Alloys
- Engineered for high-performance bending applications
- Provide excellent wear resistance and surface protection
- Reduce friction and eliminate galling without the need for excessive lubrication
- Offer superior thermal conductivity, helping dissipate heat during continuous forming
- Widely used in mandrels and wiper dies where precision and repeatability are critical
Among these, AMPCO® aluminum bronze alloys are preferred in demanding tube bending operations due to their combination of durability, low friction, and non-marring performance. They help ensure smooth bends, protect the tubing surface, and extend the lifespan of the tube bending tools.
Various sizes of precision tube bending mandrels made of AMPCO® aluminum bronze
Final Thoughts
Understanding the tube bending basics is a valuable starting point for anyone involved in fabrication or product design. From bend geometry to tooling materials, each aspect contributes to the reliability and quality of the final part. Using purpose-built tools made from high-performance materials, like AMPCO® aluminum bronze alloys, supports greater precision and consistency in the process.
