Injection molding materials have evolved significantly, shaping industries with their versatility and efficiency. From early simple plastics to advanced composite materials, their development continues to drive innovation in modern manufacturing.
The evolution of injection molding materials has revolutionized manufacturing, enabling the production of precise components with varying complexity across different industries. Over the years, advancements in materials have improved the durability, efficiency, and sustainability of the process, to meet the ever-growing demands of modern applications.
Our article explores the evolutions of these materials, highlighting key milestones, breakthroughs, and trends that will continue to shape the industry.
The Origins of Injection Molding Materials
The beginnings of injection molding can be traced back to the late 19th century, when the demand to mass-produce items in a cost-effective manner grew substantially due to the industrial revolution. In 1872, John Wesley Hyatt and his brother Isaiah patented the first injection molding machine. It was a simple design with a plunger used to push celluloid into a mold via a heated tube. The aim was to create an alternative product to ivory billiard balls.
This invention marked the first standardized approach to injection molding, providing a foundation for the manufacture of buttons, combs, shirt collars, etc. It also served as a basis for further advancements. By the early 20th century, materials like Bakelite, a thermosetting plastic patented by Leo Baekeland in 1907, introduced new possibilities for producing durable and heat-resistant products.
These early developments paved the way for widespread industrial adoption, leading to the use of more versatile and specialized polymer molding that could meet the diverse needs of emerging industries such as automotive, electrical, and consumer goods. The standardization of processes and materials in this era laid the groundwork for the sophisticated injection molding techniques and high-performance materials we rely on today.
Example of a plain mold for plastic mirrors
Breakthroughs and Key Milestones
Key breakthroughs in injection molding materials and technological advances have led to an evolution of injection molding, contributing to the efficiency and versatility of the process.
In the 1920s other thermosetting plastics have been introduced which revolutionized the industry by offering more materials that could withstand high temperatures and mechanical stress. This advancement allowed to produce products with even higher resistance, expanding the applications of injection molding beyond just simple consumer goods.
The demands of World War II in the 1940s further accelerated the development of injection molding processes. The need for mass production of durable and lightweight components like helmet liners, parachutes, ropes, body armor and others led to significant improvements in materials and machinery, making plastic molding an essential part of wartime manufacturing.

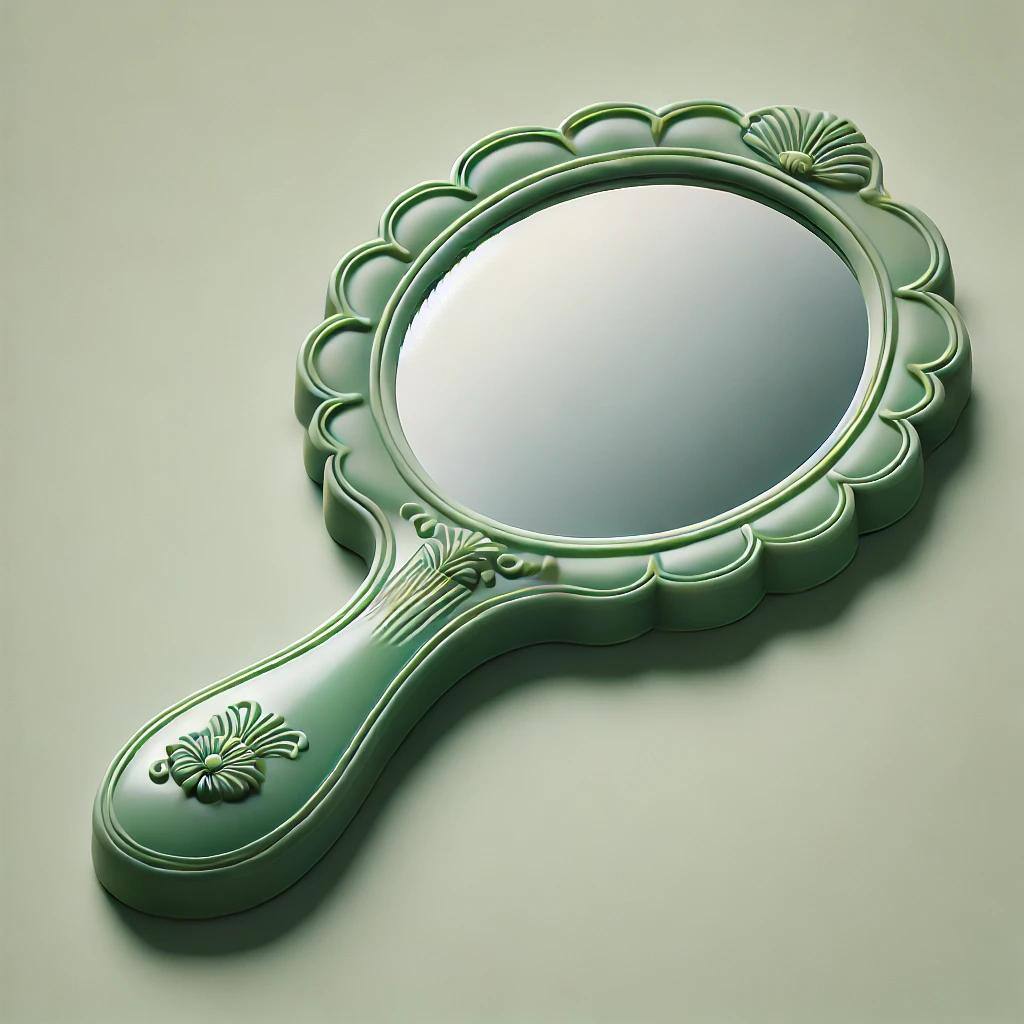

Example of a simple vintage mirror made by plastic molding
By 1946 James Watson Hendry had designed the extrusion screw injection molding machine. The rotating screw allowed to more evenly melt the granulate and to remove gas from the melted substance, which prevented the formation of air bubbles in the finished molded parts. This also enabled to mix several different types of plastics or to add colors to specific batches.
The post-war economic boom of the 1950s saw the utilization of military applications as staples of the civilian industry. Plastic manufacturing surged as consumer demand for affordable, mass-produced products grew. The introduction of new injection molding materials, like polyethylene and polypropylene, facilitated the creation of a wide range of products, from household goods to industrial components.
The 1970s and 1980s brought with them even more significant advancements in machine design and automation. The integration of computer-aided design (CAD) and microprocessor controls improved precision and efficiency, while the adoption of robotics streamlined production processes, reducing costs and enhancing consistency.
These breakthroughs have laid the foundation for the sophisticated injection molding processes used today, transforming it into a cornerstone of modern manufacturing.
Animation of the screw injection molding process – the animation is an excerpt from the following video: Injection Molding Animation
Current State of Injection Molding Materials
Today, injection molding benefits from a wide range of materials that offer advanced durability (resistance to mechanical stress, environmental conditions, and repeated use), flexibility, heat resistance and efficiency across various industries. Manufacturers can choose from versatile options tailored to meet specific performance needs.
Among the most used materials you will find:
- Acrylonitrile Butadiene Styrene (ABS)
Durable and impact-resistant, common in automotive parts and electronics. - Polypropylene (PP)
Lightweight and chemically resistant, ideal for packaging and medical applications. - Polyethylene (PE)
Strong and flexible, widely used in containers and tubing. - Polystyrene (PS)
Affordable and easy to mold, often found in disposable products and household items. - PC-ASA (Polycarbonate-Acrylonitrile Styrene Acrylate)
Combines the impact resistance of polycarbonate with the UV and weather resistance of ASA, making it ideal for outdoor applications, automotive parts, and electrical housings.
Although these materials are cost effective and overall efficient, this is not the final stage for injection molding materials by any means. It is a very dynamic industry in which constant reevaluation and adjustment is mandatory.

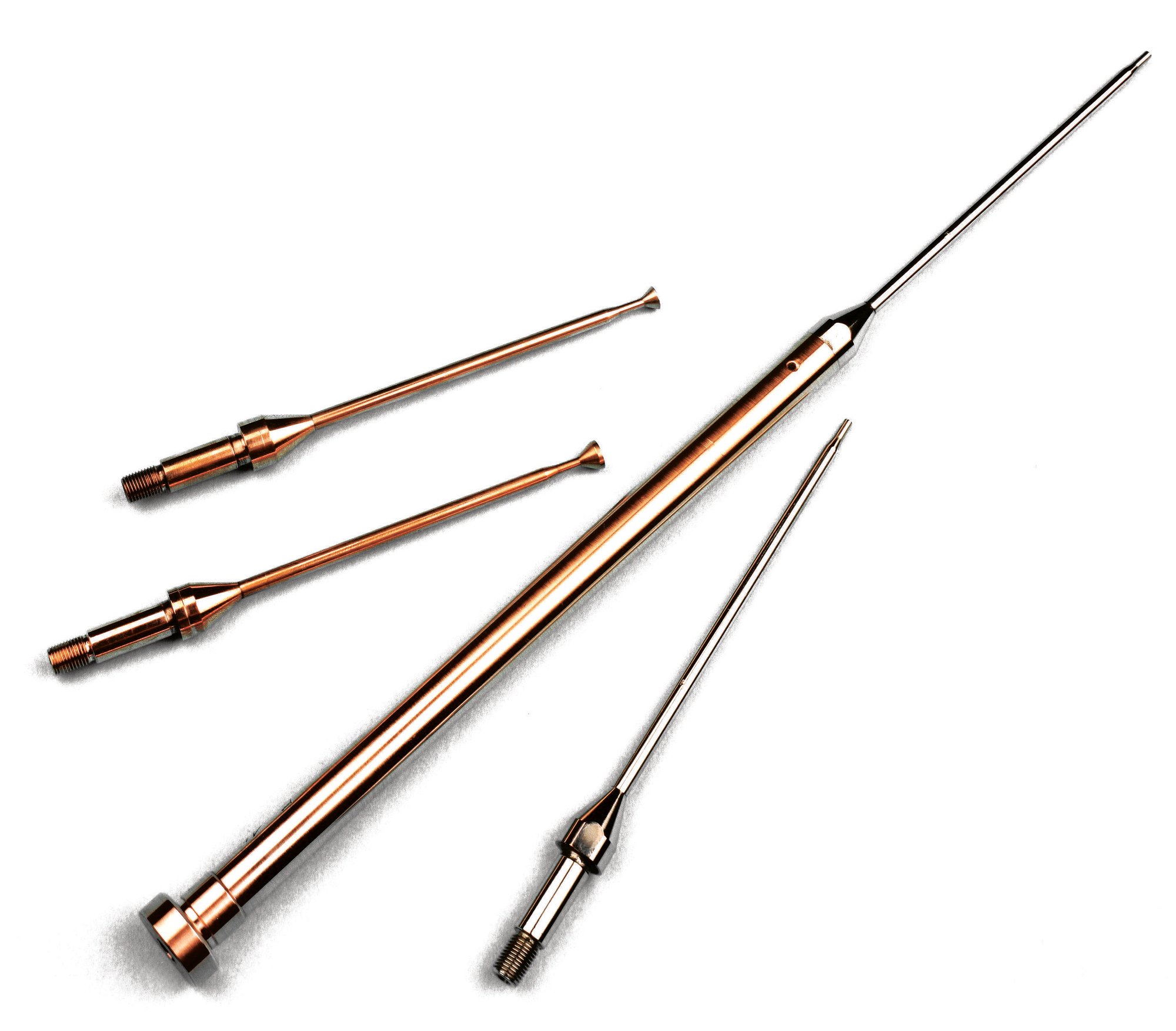

Automotive and machined parts made using the mentioned injection molding materials
Future Trends and Developments
Significant advancements can be expected in the injection molding industry within the next years, driven by technological innovations and a growing emphasis on sustainability. Key trends that'll likely shape the future:
1. Advanced Materials
Bioplastics and composites
The emergence of advanced materials is set to expand into several industries, including automotive, aerospace, and medical. Such materials are:
- Biodegradable polymers:
Materials like PBAT that break down naturally, reducing environmental impact. - Recycled plastics:
Resin injection molding materials such as rPET and rPP minimize waste and support circular economy incentives. - Natural fiber composites:
Combining plastics with natural fibers enhances sustainability without compromising performance.
2. Automation and Industry 4.0
- Smart manufacturing
The integration of the IoT and AI technologies is enhancing process monitoring, workflow and quality control, leading to more efficient and precise production.
3. Sustainable Practices
- Ecological materials and energy efficiency
The adoption of environmentally friendly materials and energy-efficient machines is reducing the carbon footprint of the manufacturing process.
These developments have the potential to redefine injection molding, making it not just more efficient, but also sustainable, and adaptable to the ever-changing demands of various industries.
Example of granules that can be used in injection molding
Final thoughts
The evolution of injection molding materials has transformed manufacturing, enabling the production of high-quality, and durable components of various specifications across numerous industries. From the early use of basic thermosets, through common injection molding thermoplastics to the development of advanced polymers and composites, each innovation has contributed to improving performance, efficiency, and precision.
As materials continue to evolve, advancements in technology and plastic molding manufacturing processes will drive greater productivity, cost-effectiveness, efficiency and design possibilities. With ongoing research and development, injection molding remains a crucial element in modern manufacturing with the capacity to meet the constantly growing demands of industries worldwide.
