The deep drawing process is a key sheet metal forming method that produces seamless, precise shapes for industries ranging from automotive to packaging. Its efficiency and versatility make it essential in modern manufacturing.
At its core, the deep drawing process relies on controlled pressure to transform flat sheet metal into hollow shapes without seams. The use of specialized tools such as punches, dies, and blank holders ensures accuracy while maintaining material integrity.
As industries demand greater efficiency and product complexity, deep drawing continues to evolve with new materials and improved tooling methods. Its adaptability not only secures its role in today’s production lines but also positions it as a key process for future manufacturing challenges.
Understanding the Deep Drawing Process
Deep drawing is a metal forming method used to shape flat sheet material into hollow, bowl-like forms. Unlike simple bending or stamping, it involves substantial material flow, where the sheet is pulled into a die cavity by a punch. This allows manufacturers to produce components with depth greater than their diameter while preserving structural strength.
The process is valued for its ability to achieve consistent, seamless shapes without the need for welding or joining. This makes it particularly efficient for high-volume production, where uniformity and reliability are critical. By controlling parameters such as sheet thickness, drawing ratio, and lubrication, manufacturers can achieve repeatable results that meet demanding industrial standards.
Deep drawing is widely used to produce items such as automotive body panels, fuel tanks, kitchen sinks, beverage cans, and electronic housings. These components highlight the process’s versatility, covering both heavy-duty industrial applications and consumer goods that require precise, durable shapes.

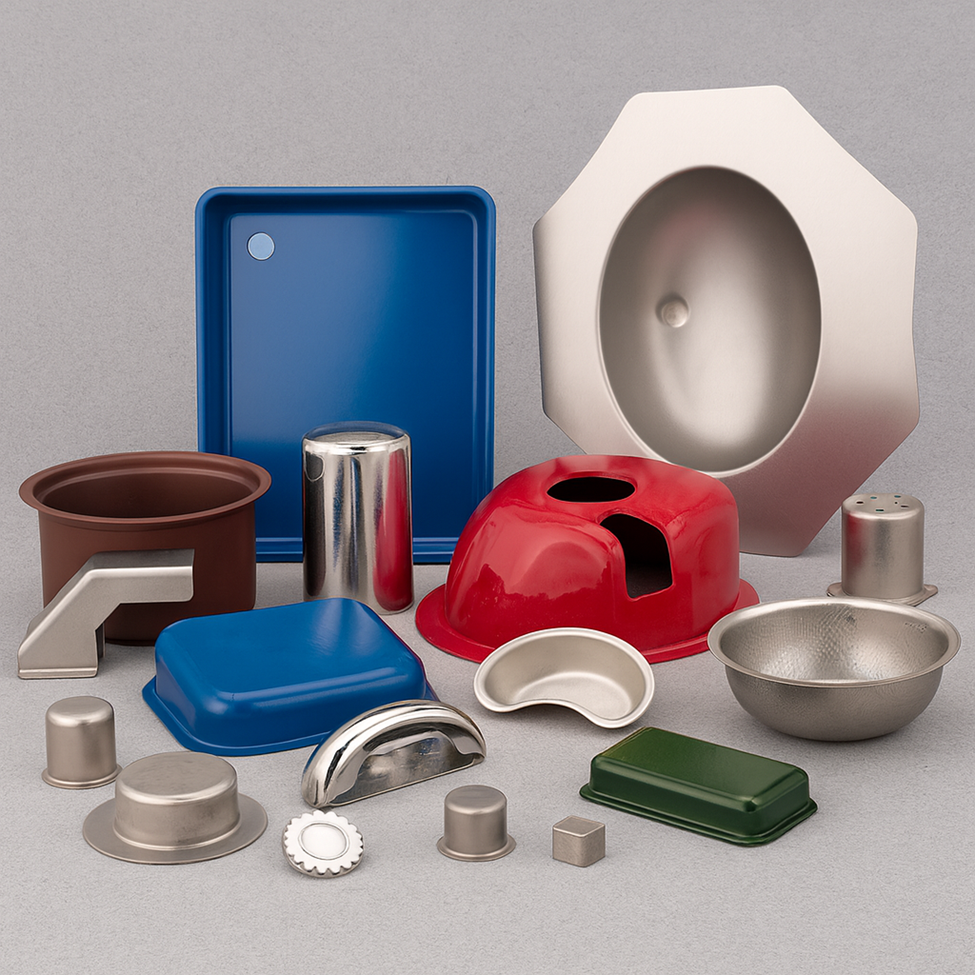

Items made using the deep drawing process
Key Steps and Components in Deep Drawing
The deep drawing process begins with a flat sheet, or blank, that is securely held in place by a blank holder. A punch then forces the material into the die cavity, shaping it into the desired form while controlling material flow to prevent tearing or wrinkling. Depending on the depth and geometry of the part, multiple drawing stages may be required to achieve the final shape.
Several components are essential for success. The punch determines the shape of the drawn part, while the die defines the cavity into which the material is formed. The blank holder applies the necessary pressure to regulate sheet movement and minimize defects. Supporting elements such as lubricants and cooling systems further ensure smooth forming and consistent part quality. Together, these steps and components create a controlled process capable of producing both simple and complex geometries at scale.

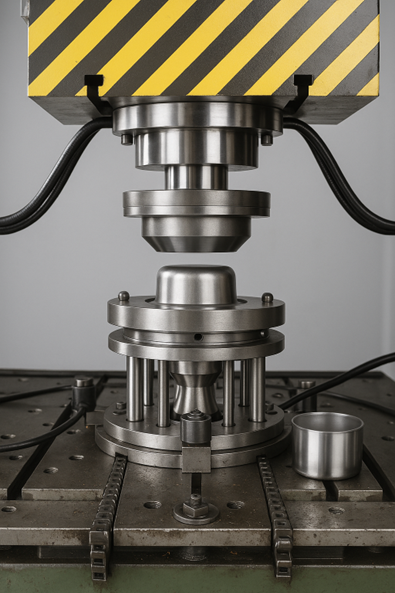

Deep drawing machine for stainless steel pots
The Main Factors to Consider that Influence the Process
The outcome of the deep drawing process depends heavily on several interconnected factors. Material properties such as ductility, tensile strength, and sheet thickness play a decisive role in how well the sheet can be formed without tearing or excessive thinning. The choice of lubrication is equally important, as it reduces friction between the punch, die, and blank, ensuring smoother material flow.
Tooling design also has a major influence, for example:
- The geometry of the punch and die.
- The pressure applied by the blank holder
- The precision of tool surfaces and many more.
All of these factors and others affect the quality of the final part. Even slight variations in these parameters can lead to defects such as wrinkling, cracking, or uneven wall thickness. When properly managed, these factors enable manufacturers to maintain consistency, efficiency, and high-quality results across large production runs.

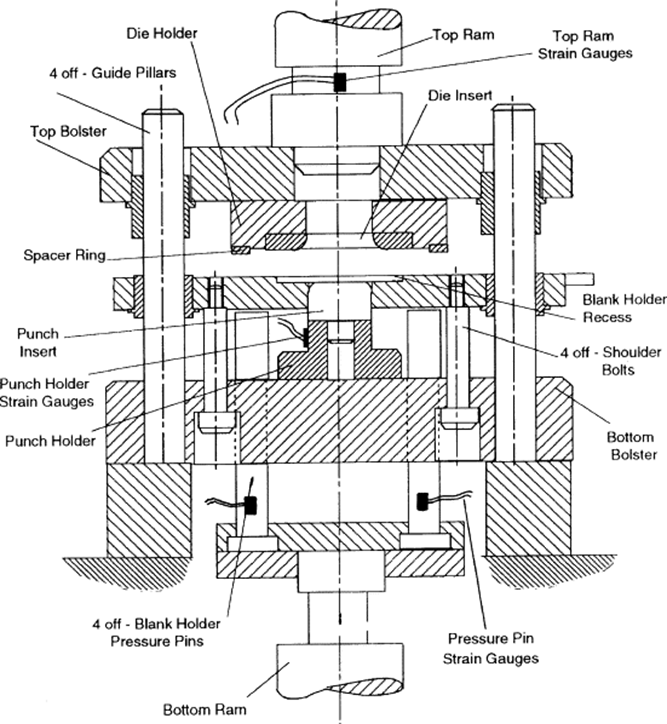

Schematics of a setup for the deep drawing process
Final Thoughts
The deep drawing process enables manufacturers to produce durable, seamless components efficiently and at scale. Its precision and consistency make it a trusted method across industries that require high output without compromising quality. When supported by proper material selection, well-designed tools, and controlled parameters, the process delivers reliable results that meet demanding production standards.
