Deep drawing defects often originate from friction, heat, and uneven material flow during forming. AMPCO® aluminum bronzes reduce these issues by ensuring smoother tool surfaces, stable temperatures, and consistent performance in every production cycle.
Even the most advanced deep drawing processes can experience surface marks, tearing, or dimensional inaccuracies if tool materials cannot withstand pressure and friction. Defects like these disrupt production, increase scrap rates, and add costly rework to each batch. The root cause is often found in the tooling itself, particularly in wear-prone areas of dies, punches, and blank holders.
AMPCO® Aluminum Bronzes, particularly AMPCO® 25 and AMPCO® 26, provide a reliable solution to these challenges. Their anti-galling behavior, good thermal conductivity, and polishability ensure smooth material flow and clean tool surfaces throughout production. By maintaining dimensional stability and preventing adhesion, AMPCO alloys allow manufacturers to minimize deep drawing defects and achieve consistent part quality across large-scale operations.
Common Deep Drawing Defects and Their Causes
Deep drawing defects usually result from uneven pressure, poor lubrication, or unstable contact between the tool and the sheet. The most frequent problems include:
- Galling and surface scratching – caused by adhesion between the sheet and tool surface, especially when forming stainless or coated steels.
- Wrinkling – occurs when the blank holder fails to apply even pressure, allowing excess material to gather in the flange area.
- Cracking or tearing – results from excessive strain or rough tool surfaces that prevent smooth material flow.
- Dimensional deviations – caused by thermal expansion, uneven wear, or deformation of the tool under repeated loading.
Each of these defects directly impacts production efficiency and part quality. Conventional tool steels often contribute to these problems due to their tendency to gall under high contact pressure and limited ability to dissipate heat. AMPCO® Aluminum Bronzes counter these weaknesses by combining mechanical strength with excellent sliding properties and heat conductivity, laying the groundwork for defect-free forming.

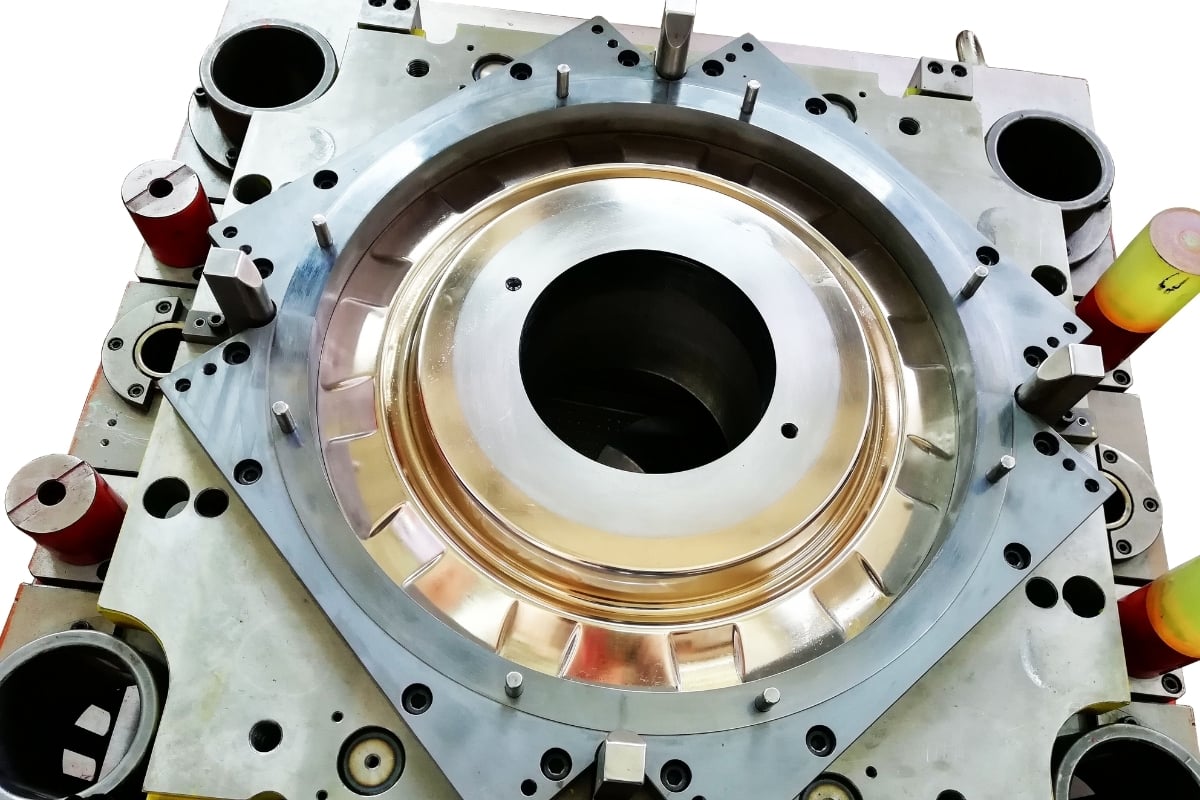

Installed deep drawing die made from AMPCO® Aluminum Bronze
How AMPCO Alloys Help Minimize Defects
The key to reducing deep drawing defects lies in maintaining stable tool surfaces and controlled material flow. AMPCO® Aluminum Bronzes excel in both areas. Their anti-adhesive properties prevent material transfer and galling, ensuring that the sheet moves smoothly over the tool without sticking or scratching. This not only improves surface finish but also prevents the formation of wrinkles and cracks caused by irregular movement.
Thermal control is another critical factor. The thermal conductivity of AMPCO® 25 and AMPCO® 26 allows heat generated during forming to dissipate quickly, maintaining stable tool temperatures compared to steel. Consistent heat management reduces dimensional deviations and supports uniform pressure distribution throughout the forming zone.
In addition, the alloys’ ability to maintain a polished, mirror-like surface minimizes friction and enhances lubricant retention. These combined properties translate into fewer interruptions, lower scrap rates, and a measurable improvement in overall process stability.
-jpg.jpeg?width=1200&height=800&name=Blog%20images%201200x800%20(2)-jpg.jpeg)

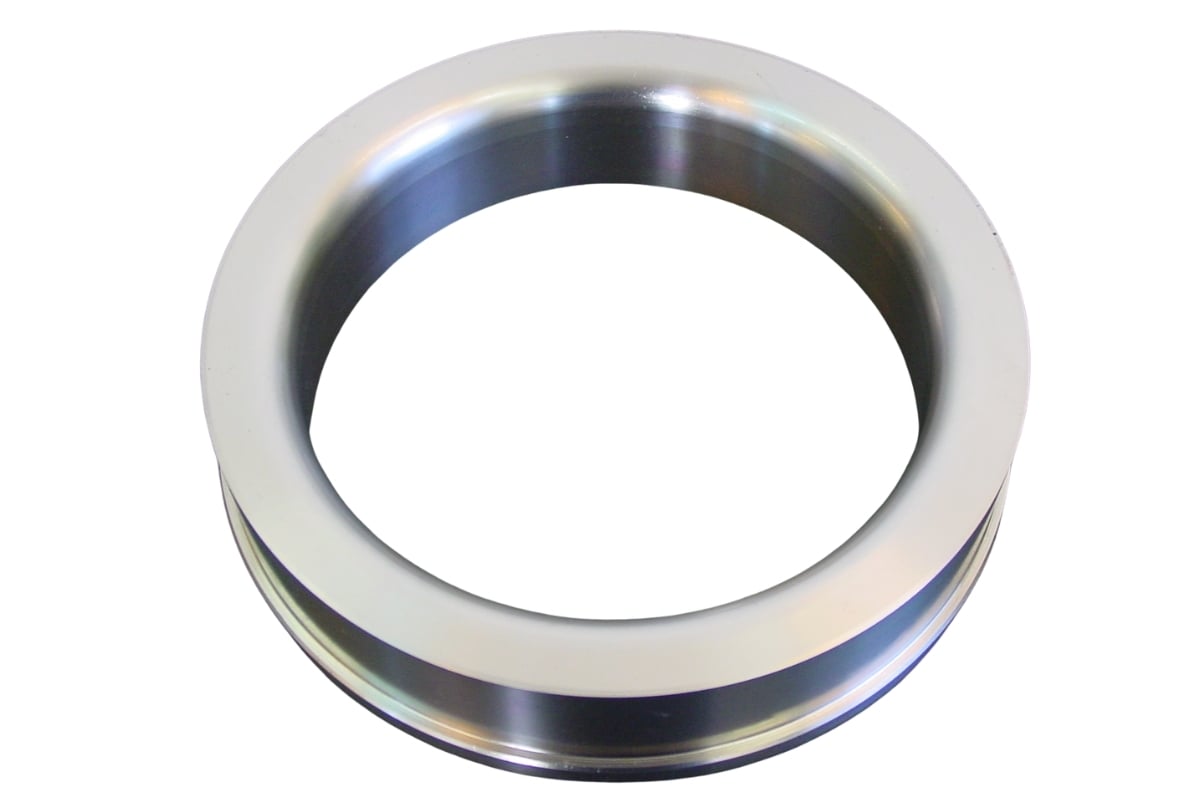

AMPCO® Aluminum Bronze is an optimal choice for precision deep drawing die rings
Performance Advantages for High Outputs
In high-volume production, even small improvements in tool performance can lead to significant operational gains. AMPCO® Aluminum Bronzes allow presses to run longer between maintenance intervals by resisting wear and maintaining clean contact surfaces. Their stable friction characteristics help ensure uniform material flow, reducing the need for tool adjustments or part rework.
For large-scale forming of stainless or coated steels, these properties translate into measurable efficiency improvements:
- Extended tool life – fewer tool replacements and reduced downtime.
- Consistent part quality – stable surface conditions minimize variability between production runs.
- Improved surface finish – the mirror-polished tool surface prevents marks and scratches on finished parts.
- Lower scrap and rework rates – fewer defects result in material and cost savings.
- Optimized production rhythm – stable tool behavior supports predictable, high-speed forming cycles.
By maintaining performance over extended runs, AMPCO® 25 and AMPCO® 26 contribute directly to higher output, lower costs, and greater production reliability which makes them ideal choices for demanding industrial applications.
Final Thoughts
Reducing deep drawing defects begins with the right choice of tooling material. AMPCO® Aluminum Bronzes, specifically AMPCO® 25 and AMPCO® 26, combine wear resistance, thermal stability, and anti-galling properties to deliver a consistent, defect-free forming process. Their ability to maintain clean surfaces, stable dimensions, and efficient heat transfer allows manufacturers to minimize wrinkling, cracking, and surface marks even in high-pressure operations.
For professionals seeking to expand their understanding of alloy performance and tool optimization, the AMPCO Academy offers a wide range of resources and expert articles covering all aspects of forming technology.
Engineers who require more detailed data and practical guidelines can download the technical paper “Maximizing Performance in Deep Drawing with AMPCO® Aluminum Bronze.” It provides verified comparisons, application insights, and proven results that demonstrate how AMPCO® 25 and AMPCO® 26 outperform conventional tooling materials in real-world production.
