In deep drawing, aluminum bronze is used as a tooling material for dies, punches, blank holders, and draw rings. Its wear resistance, heat dissipation, and clean surface behavior supports stable material flow, high part quality, and consistent output.
Copper alloys, and particularly aluminum bronze, have become essential materials for high-performance deep drawing tools. Used in dies, punches, blank holders, and draw rings, they combine strength, wear resistance, and thermal efficiency to support demanding production conditions. Their ability to maintain stable tool temperatures and resist surface damage ensures consistent forming quality even under continuous operation.
In large-scale manufacturing, where tool longevity and surface integrity are critical, aluminum bronze provides a clear performance advantage. It allows for cleaner operation, reduces lubricant use, and minimizes maintenance interruptions, making it a preferred choice for modern deep drawing systems built for productivity and reliability.
Why Aluminum Alloys Are Used in Deep Drawing
Deep drawing tools operate under constant pressure and sliding contact, where friction and heat buildup can quickly lead to wear and surface damage. Aluminum bronze is engineered to handle these conditions through its unique combination of hardness, toughness, and anti-friction behavior. Its fine-grained structure and copper-aluminum matrix allow it to maintain dimensional stability and resist mechanical fatigue, even under continuous forming cycles.
The alloy’s good thermal conductivity helps draw heat away from the contact zone, keeping tool temperatures stable and minimizing distortion. At the same time, its natural resistance to adhesion prevents galling and material transfer when forming steels, ensuring clean tool surfaces and a smooth finish on drawn parts. These properties make aluminum bronze an optimal choice for inserts, radii, and wear-prone sections of dies and punches that demand both durability and precision.

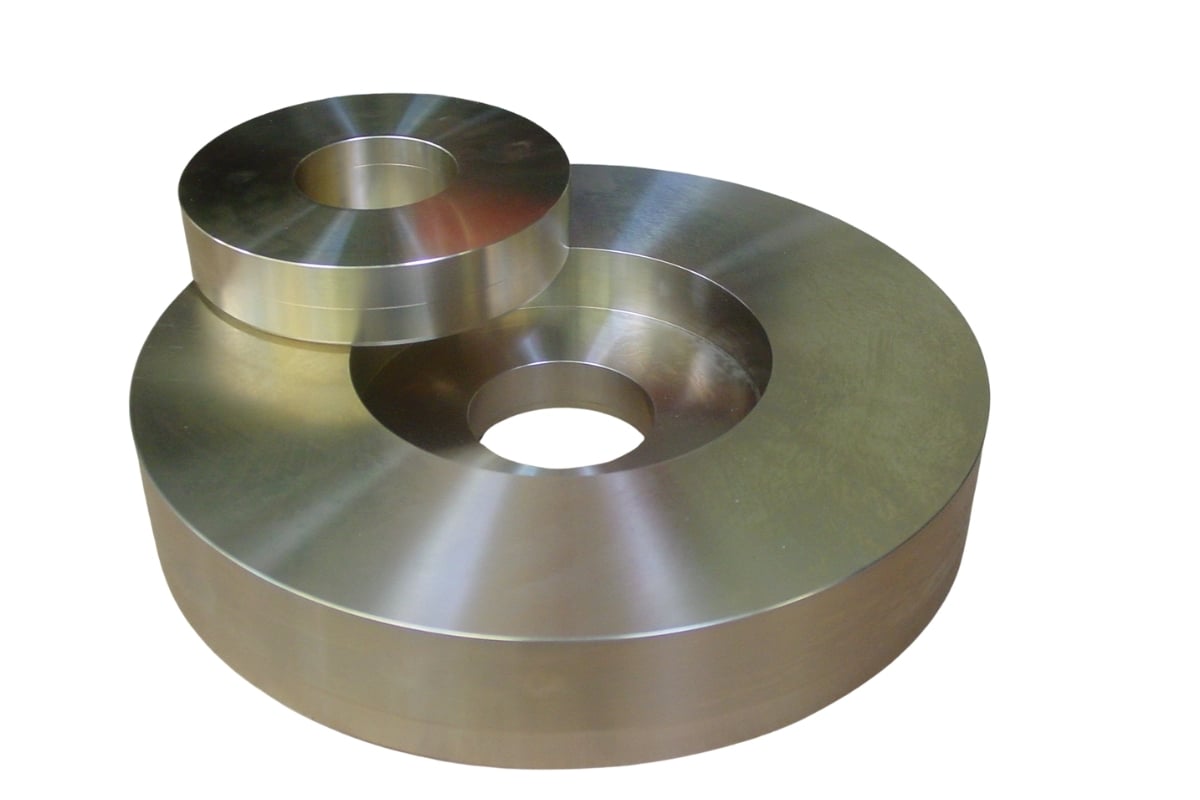

Deep drawing dies made from aluminum bronze
Key Applications of Aluminum Alloys in Deep Drawing
Aluminum bronze is used throughout deep drawing tooling wherever contact with the sheet metal demands durability, smooth movement, and temperature control. In dies and punches, it helps maintain precise forming edges and prevents surface pickup, which is especially important when drawing carbon or stainless steels. The material’s hardness and lubricity reduce friction between tool and sheet, allowing for cleaner forming and longer tool life.
In blank holders and draw rings, aluminum bronze provides excellent pressure distribution and low friction, ensuring the sheet flows evenly into the die cavity. These properties help prevent defects such as wrinkling or tearing during forming. Many manufacturers also use aluminum bronze inserts or liners in high-wear areas of steel dies, combining the rigidity of tool steel with the anti-galling performance of aluminum bronze. This hybrid approach has become standard practice in high-volume production where consistent surface finish and process stability are required.
Benefits and Limitations of Aluminum Alloys in Industrial Use
Aluminum bronze provides significant advantages in the construction of deep drawing tools. Its mechanical and thermal properties directly improve process stability, tool longevity, and part quality. When used correctly, it supports continuous production with minimal maintenance or surface reconditioning.
Key benefits include:
- High wear resistance – withstands constant contact and pressure without surface degradation.
- Excellent anti-galling behavior – prevents adhesion and metal transfer when forming carbon or stainless steels.
- Good thermal conductivity – dissipates heat quickly, reducing temperature fluctuations during long production runs.
- Reduced lubricant requirements – smoother tool surfaces and lower friction minimize lubricant use.
- Extended tool life – less polishing, fewer repairs, and greater dimensional stability under load.
Despite its advantages, there are a few limitations to consider. Aluminum bronze is softer than tool steel in bulk applications, making it better suited for inserts, liners, and high-friction zones rather than entire die structures. It should also not be used for forming aluminum sheets, as the similar compositions can lead to galling. By applying the material strategically, manufacturers achieve optimal performance without compromising tool rigidity or product quality.

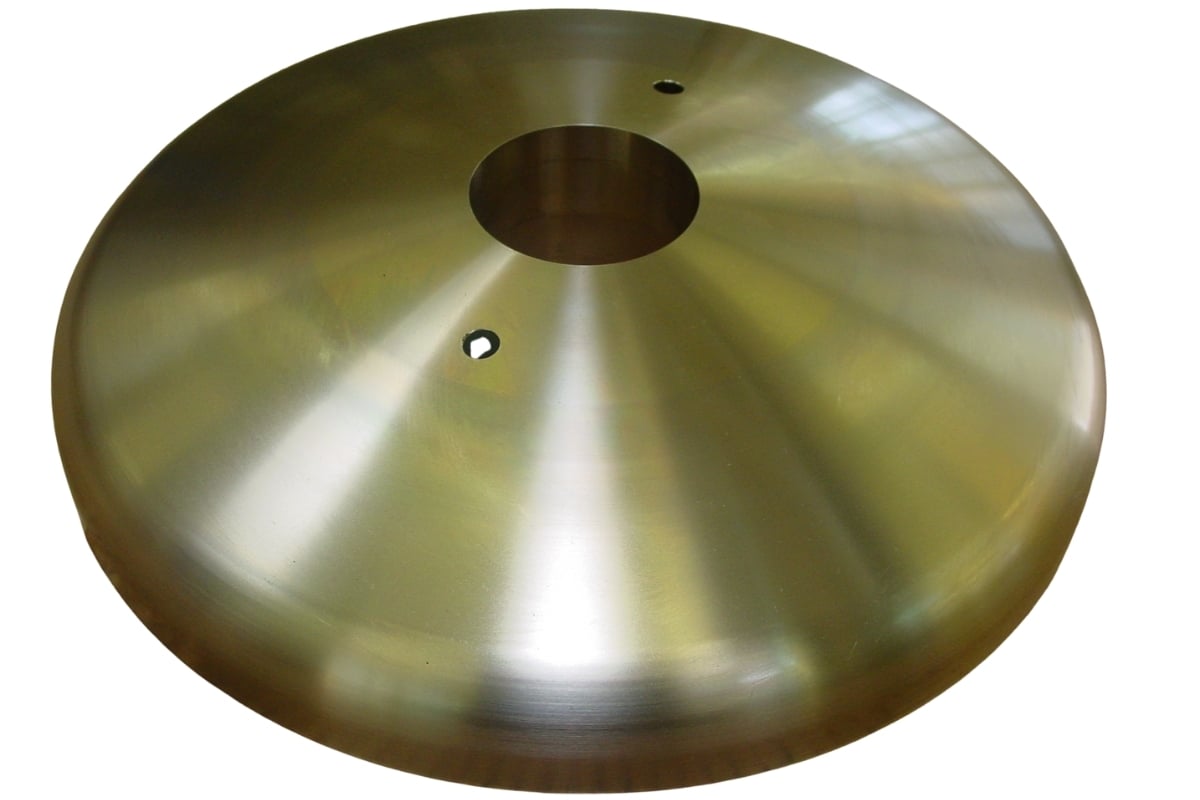

An aluminum bronze punch head for a cleaner surface finish
Final Thoughts
Aluminum bronze has proven to be one of the most effective materials for deep drawing tools, offering a reliable balance between strength, wear resistance, and process stability. Its performance under heavy loads and continuous production makes it a trusted choice for manufacturers who require precision, consistency, and reduced downtime. When used in combination with tool steels, it forms a robust hybrid solution that delivers both rigidity and surface protection.
Professionals seeking to improve tooling performance or gain a deeper understanding of alloy behavior in forming operations can explore the AMPCO Academy. The Academy offers expert resources, practical insights, and detailed information on how high-performance alloys enhance manufacturing efficiency and long-term reliability.
