In resistance welding, welding electrode materials directly influence current and heat transfer, tip stability, and wear rates. For resistance welding electrodes, copper alloy electrodes are often selected when electrode wear resistance and consistent performance over long runs are critical.
Why Welding Electrode Materials Decide Process Stability
In resistance welding, electrodes are not just consumables. They are current-carrying, force-applying, heat-removing components that shape how the weld forms from cycle to cycle. If welding electrode materials cannot maintain a stable tip geometry and contact condition, current density and heat generation shift, and weld quality drifts even when the weld schedule stays unchanged.
That is why resistance welding electrodes are often engineered around tradeoffs: electrical and thermal conductivity for current and heat transfer, mechanical strength to resist mushrooming, and surface behavior that limits pickup and sticking. Copper alloy electrodes are commonly chosen when those requirements must stay consistent over long production runs and electrode wear resistance becomes a limiting factor.
For a more comprehensive look at the given topic, download our free technical paper:
Performance and Wear Mechanisms of High-Conductivity Alloys in Resistance Welding
What Welding Electrode Materials Must Deliver in Production
In production resistance welding, an electrode has to hold a narrow operating window for thousands of cycles. That means delivering repeatable electrical contact, repeatable force transmission, and repeatable heat removal, even as surfaces oxidize, coatings vary, and parts bring normal variation from upstream operations.
At a minimum, welding electrode materials must provide:
- Stable current and heat transfer: The electrode must carry high current with low internal losses while pulling heat away from the tip and surrounding tooling. When heat builds up locally, the tip softens and deforms faster, and weld behavior becomes less predictable.
- Mechanical strength at operating temperature: Force is applied every cycle, and the tip sees repeated thermal spikes. Materials that lose strength as temperature rises are more prone to mushrooming and rapid contact-area growth, which changes current density and shifts nugget formation.
- Resistance to surface damage mechanisms: In real lines, electrodes face pickup, sticking, and alloying with the workpiece surface, especially on coated steels or contaminated parts. Once pickup starts, contact conditions become unstable and dressing frequency rises quickly.
- Controlled wear behavior and maintainability: Wear is not only material loss. It includes tip face growth, shape changes, and surface condition changes. The best-performing systems are the ones where wear progression is slow, predictable, and easy to manage with consistent dressing intervals.

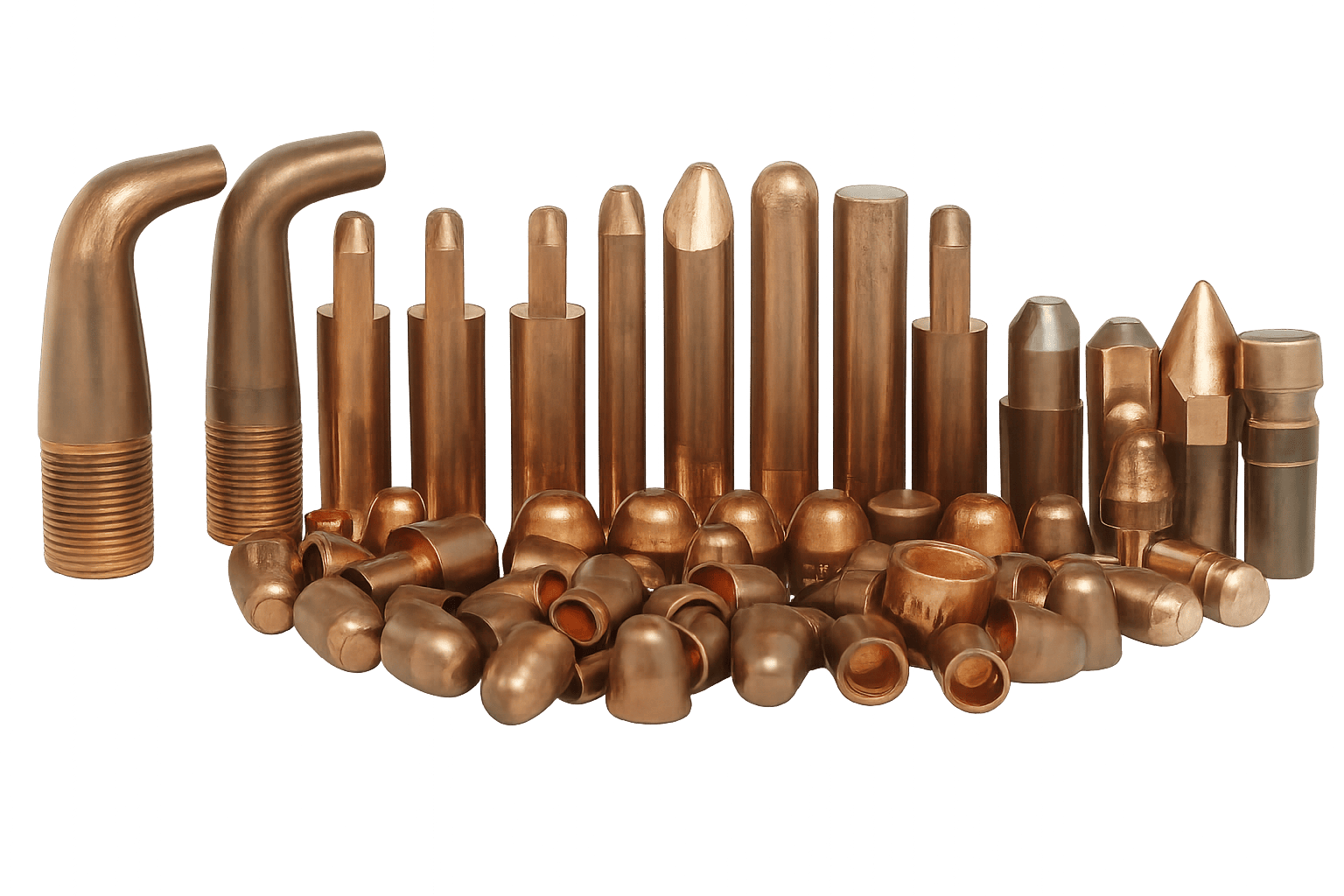

Resistance welding tips made of AMPCOLOY®
Comparing Common Electrode Material Families
When technicians compare welding electrode materials, the decision usually comes down to a measurable tradeoff: conductivity versus strength and softening resistance. As you move from high conductivity copper grades to higher-strength copper alloys, electrical and thermal conductivity drop, while hardness and strength rise. That shift directly affects current and heat transfer, tip stability, and how fast the electrode face grows in production.
- High conductivity copper grades (pure copper and high conductivity copper alloys)
Typical behavior: very high conductivity (often near the top of the scale) with lower hardness and strength.
What it means in practice: excellent heat removal and current delivery, but a higher risk of tip deformation and mushrooming when force, duty cycle, or part surface conditions are demanding. - Balanced electrode copper alloys (common “workhorse” electrode families)
Typical behavior: high conductivity with a clear step up in strength and hardness versus pure copper.
What it means in practice: a better balance between current and heat transfer and mechanical stability, often improving consistency between dressing intervals without giving up too much thermal performance. - High-strength copper alloys (strength-dominant electrode families)
Typical behavior: significantly lower conductivity (often down into the mid and low ranges) with substantially higher hardness and strength.
What it means in practice: improved resistance to deformation and face growth, but heat is removed less aggressively. That makes cooling effectiveness, duty cycle, and contact condition more critical to avoid thermal buildup and drift. - Where high-copper alloys like AMPCOLOY® fit
High-copper alloys are typically selected when you still need strong current and heat transfer but also need better resistance to deformation, pickup, and wear than “soft” high conductivity copper. In other words, they target the space where electrode wear resistance and stable geometry matter, but you cannot afford to sacrifice conductivity too far because current and heat transfer still drive process stability.

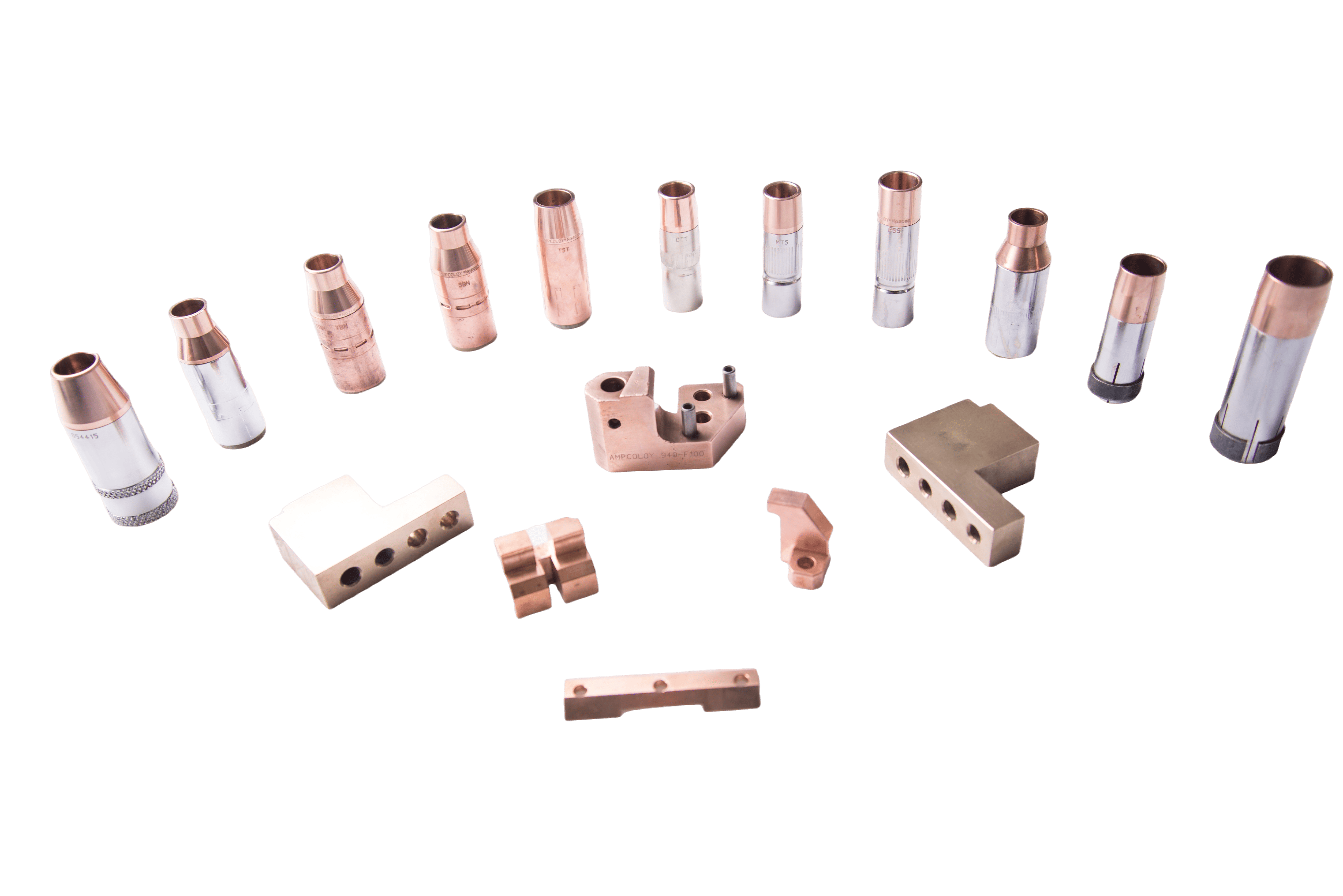

AMPCOLOY® holders for resistance welding electrodes
How Material Choice Impacts Precision and Longevity
In resistance welding, “precision” is mostly about keeping the electrode tip behavior consistent over time. Once the tip face grows, deforms, or picks up material, contact area and current density change. That shifts heat generation at the interface and makes weld quality harder to hold even if the weld schedule is unchanged. Material choice influences how fast that drift happens and how predictable it is.
- Tip geometry stability (mushrooming and face growth):
Softer, high conductivity materials can deliver excellent current and heat transfer, but they are more likely to deform under repeated force and thermal cycling. As the contact area increases, current density drops, and operators often compensate by increasing current or time. Higher-strength copper alloys slow this progression, which helps maintain a stable weld window and reduces how often settings need correction. - Pickup, sticking, and surface condition sensitivity:
Many real-world defect patterns begin with surface interactions at the electrode face, especially on coated or inconsistent parts. Electrode materials with better resistance to softening and surface damage reduce the chance that pickup starts and destabilizes the process. Once pickup occurs, wear accelerates quickly because the contact condition is no longer controlled. - Current and heat transfer over long runs:
Conductivity affects how efficiently heat is removed from the tip and surrounding tooling. When heat removal is stable, tip temperature stays more controlled, and both wear and weld behavior are more predictable. Lower-conductivity, strength-dominant alloys can still perform well, but they demand more disciplined cooling and duty-cycle control because thermal buildup can become the driver of drift. - Maintenance intervals and total electrode consumption:
The practical outcome is usually measured in welds per dress, welds per cap change, and how consistently the station holds quality between maintenance actions. Materials that slow face growth and reduce pickup tend to extend those intervals, which improves uptime and reduces variability. The “best” material is the one that keeps performance stable for the longest period in that specific duty cycle.
Final Thoughts
In resistance welding, welding electrode materials are a direct lever for process stability. The right choice helps maintain tip geometry, reduces pickup-driven drift, and keeps current and heat transfer more consistent across long production runs. That translates into more predictable weld quality and longer, more controlled maintenance intervals.
If you want a deeper, data-backed view of electrode wear mechanisms and how high conductivity copper alloys perform in real welding conditions, download our technical paper on resistance welding. For additional practical guidance and related articles, visit the AMPCO Academy.
