Selecting the right deep drawing materials is critical for achieving consistent, high-quality results. While steel is widely used, aluminum bronze offers many unique advantages in tool performance and durability that set it apart in demanding applications.
Deep drawing relies heavily on material choice, as each metal responds differently under the stresses of forming. Properties such as ductility, tensile strength, and thickness determine not only how easily a sheet can be shaped, but also the consistency of the final product. Understanding these differences helps engineers and manufacturers anticipate potential challenges before production begins.
Commonly used materials like aluminum bronze and steel have long been preferred for their balance of formability and strength. From these, aluminum bronze stands out for its ability to maintain tool integrity and deliver repeatable results in demanding operations, making it a valuable option for modern forming applications.
Common Materials Used in Deep Drawing
Deep drawing typically employs sheet metals that balance strength with formability. Aluminum is valued for its lightweight properties and ease of forming, making it suitable for applications where reduced weight is essential. Stainless steel, by contrast, provides excellent corrosion resistance and strength, which is why it is widely used in automotive, aerospace, and food industry components.
When it comes to deep drawing tools, steels such as D2, A2, and H13 are commonly used for dies, punches, blank holders, and draw rings. They provide high strength, stiffness, and dimensional stability after heat treatment, which makes them reliable for heavy forming operations. However, tool steels have some limitations. Their lower thermal conductivity and higher friction can lead to adhesive wear, especially when forming stainless or coated steels. This often requires additional treatment or heavy lubrication to prevent surface damage.
Aluminum bronze helps address these challenges by improving tool performance where contact with the sheet occurs. Its high wear resistance, natural lubricity, and efficient heat transfer reduce friction and the risk of galling against steel. When used as liners or inserts, or even for the entire instrument, aluminum bronze protects tool surfaces, improves part finish, and extends tool life. This combination of properties makes it a valuable choice for achieving consistent quality and smoother production in deep drawing operations.

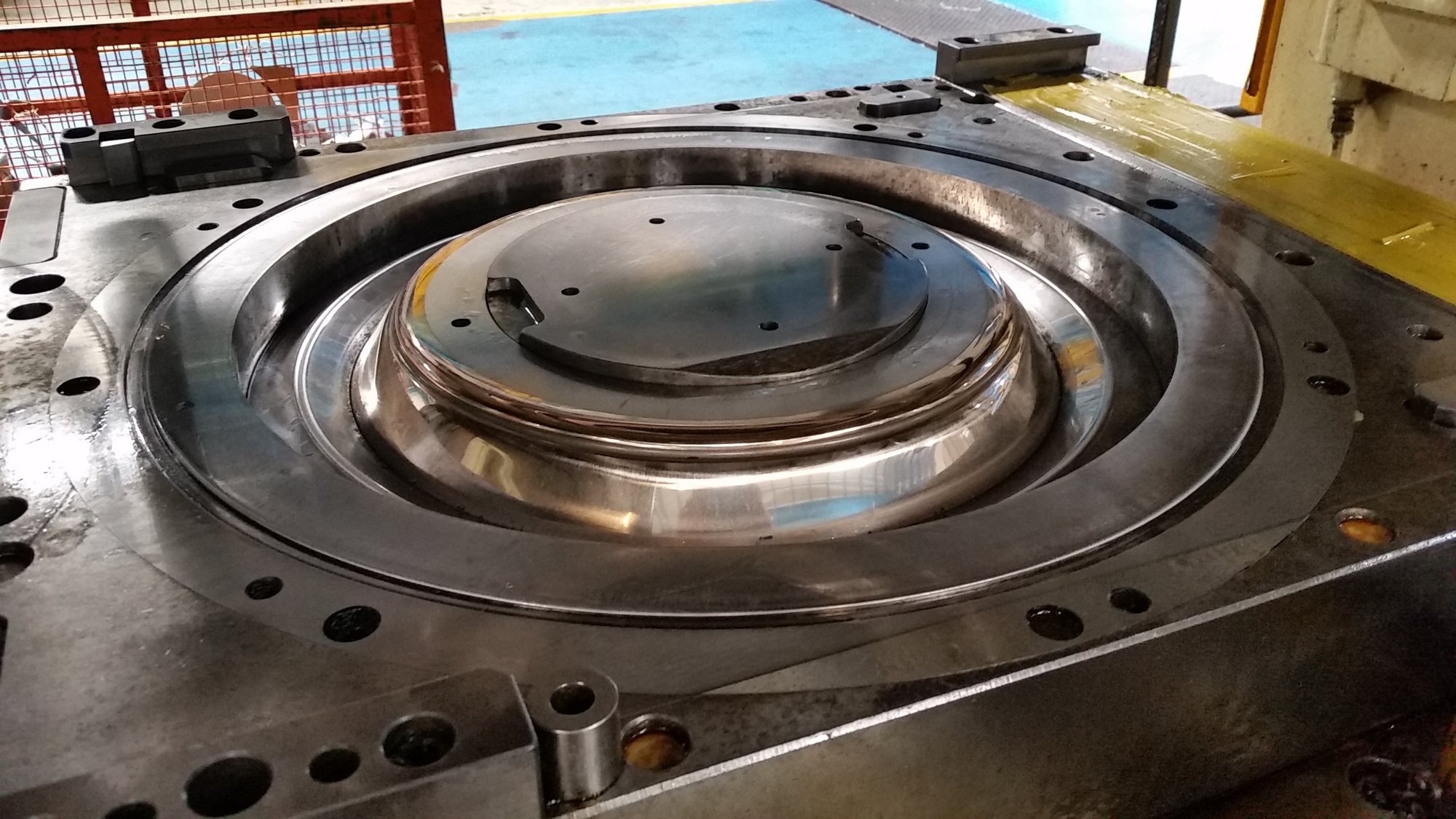

All steel setup for deep drawing
Key Properties That Affect Material Performance
The success of deep drawing depends largely on how well a material responds to deformation. Ductility is one of the most important factors, as it defines how much a metal can stretch without cracking. Materials with higher ductility, such as aluminum or copper alloys, generally allow for smoother forming and fewer defects.
Other critical properties include tensile strength and thickness, which influence both the durability of the finished part and the force required during forming. Surface quality also matters, as smoother sheets reduce friction and improve the finish of the drawn component. In tooling applications, aluminum bronze provides an added advantage with its excellent wear resistance and stability, ensuring consistent results over repeated production runs.
How Material Choice Impacts Deep Drawing Outputs
The selection of deep drawing materials directly influences both process efficiency and product quality. Materials with high ductility and controlled hardness reduce the likelihood of defects such as wrinkling, tearing, or uneven thickness, ensuring smoother production runs. Conversely, unsuitable material choices can increase tool wear, energy consumption, and overall production costs.
Aluminum bronze stands out for its role in tooling, where its strength and wear resistance contribute to consistent outputs over long production cycles. By maintaining tool integrity, it supports tighter tolerances and superior surface finishes on the final parts. This makes material selection not only a technical decision, but also a strategic factor in achieving long-term manufacturing performance.
An automatic line carrying out the deep drawing process for steel pots
Final Thoughts
Deep drawing materials determine far more than just the formability of a sheet. They shape efficiency, durability, and the overall quality of the finished product. Choosing metals with the right balance of ductility, strength, and surface performance is essential for minimizing defects and ensuring reliable production. Aluminum bronze adds measurable value in tooling, where its resilience and wear resistance extend tool life and contribute to consistent results.
